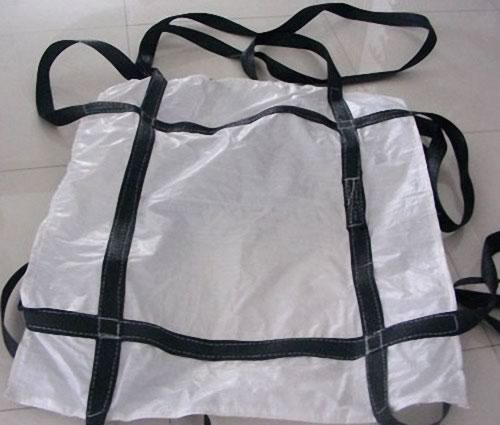

The new type of fully open soft pallet(hanging bag) belongs to a new type of cargo handling tool and is a soft pallet with flexible assembly. The soft pallet solves the problem of centralized shipment of large and light bags and the large amount of labor required for loading and unloading, saving the cost of loading and unloading. The pallet can be reused again and again, and it can be recycled and reused when it can no longer be used, which is conducive to environmental protection. And it has the advantages of convenient storage and use, and does not occupy storage space.
Tolerance and Technical Parameters of Soft Tray Products(Reference)

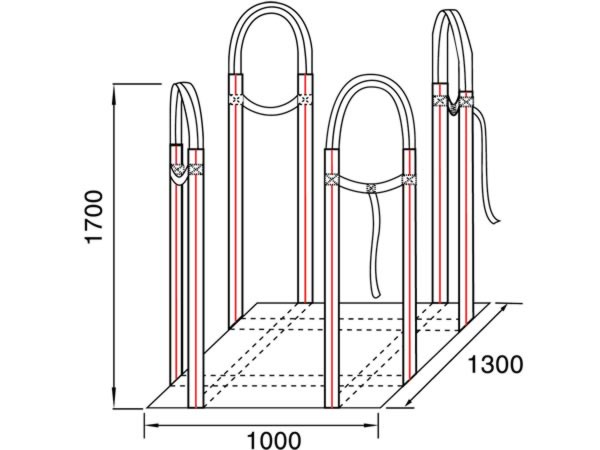

Loading weight length * width * belt high weight(kg) belt length(M) fixed band length(M)
1T 1.4 * 0.95 * 1.3 1.55 2.6 * 4 1.9 * 2
2T 1.6 * 1.35 * 1.8 2.5 3.6 * 4 roots 2.5 * 2 roots
3T 1.6 * 1.35 * 22.214.171.124 * 4 roots 2.5 * 2 roots
The length of the bag body support is ± 3 %; The width of the body of the bag is ± 3 %; Belt height ± 5 %
(There is no general size for hanging bags, customers can customize according to the packaging size of the goods)
The advantage of using soft pallet(characteristic)
1, its own weight is light, flexible and strong, convenient to use, adapt to multiple types of cargo assembly and loading and unloading operations;
2, convenient loading and unloading, improve shipping efficiency;
3, when stacking goods in the warehouse, it takes up small space and saves space;
4, soft tray flexible is strong, easy to keep, occupy less space;
5, can be recycled in the car. After transportation, the soft tray is easy to recover;
6, compared to other material pallets lower cost;
7, the use of soft trays greatly save manpower and improve work safety;
8, scrap soft tray recyclable to soft tray production home.
Design factor of safety is 5:1
Strict quality control procedures by the inspection of each and every sling bag .
